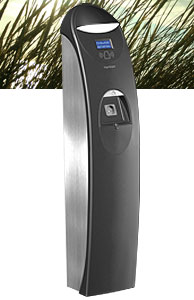

The basic features of each charge point station are:
- Maximum safety electric supply.
- Identification of the user/vehicle by RFID (Radio Frequency identification) or SMS.
- Power and energy metering.
- Blocking the access to non authorized users.
- Lamp indicator with the different status of the post (ready for charging, charging, out of service).
- Linked to other nearby charge points and wirelessly connected to a central communications network.
- Able to operate even when a power failure has occurred on the local network.
- Assembly
- Ground
- Socket
- 2P + T Schuko y/o IEC 309-2
- AC output
- 3,7 kW (230V @ 16 A) 50/60 Hz
- Power Suppl y
- 30V 16A 50/60 Hz Phase Neutral Ground
- Connection type
- Single phase *
- Rated Frequency
- 50/60 Hz
- Ambient temperatures
- -20ºC a 50ºC
- Humidity
- < 95%
- Protections
- ···· Over Current
- MCB/Automatic Reset
- ···· Differential Current
- Differential Current device 30mA/Automatic Reset
- ···· Over Voltage
- Clase II (Optional)
- Power Metering
- Clase A
- RFID Tag
- ISO 14443A / Mifare - 13,56 MHz
- Communications
- RS485,Wireless ISM868,Ethernet,Optic Fiber,CAN,GRPS
- Ingress Protection
- IP44
- Impact Resistance
- IK10
- Compliance
- Low voltage directive : 2006/95/CE
EMC: 2004/108/CE - Battery Mode
- 24 horas stand-by
- Dimensions
- 1255 x 257 x 254 mm
- Weight
- 30 Kg
- Notes: * 3 Phase Meter (32A) option also available.
- Part No.
- Description
- UR-CG-1B1P-P
- 1 Socket 2P + T 16A
- UR-CG-2B2P-P
- 2 Sockets 2P + T 16A
- UR-CG-2B1P-P-32
- 1 Socket 3P + T 16A
