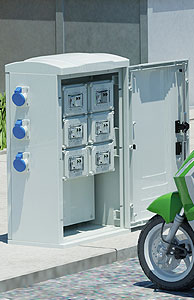

BASIC FEATURES OF THE ASSEMBLIES
  • Hot moulded fibreglass reinforced polyester floor standing enclosure.
  • Manufactured with self extinguishing material, 960º glow fire according to UNE-20672.
  • Non hygroscopic material with minimum water absortion.
  • High resistance to chemical and corrosive environments, impacts and UV stabilized.
  • Includes::
    • 30 mA MCB + 10A automatic switch disconnector.
    • 16A 2P + T Socket, IP66.
    • Secondary meter for electricity reading (depending on the model).

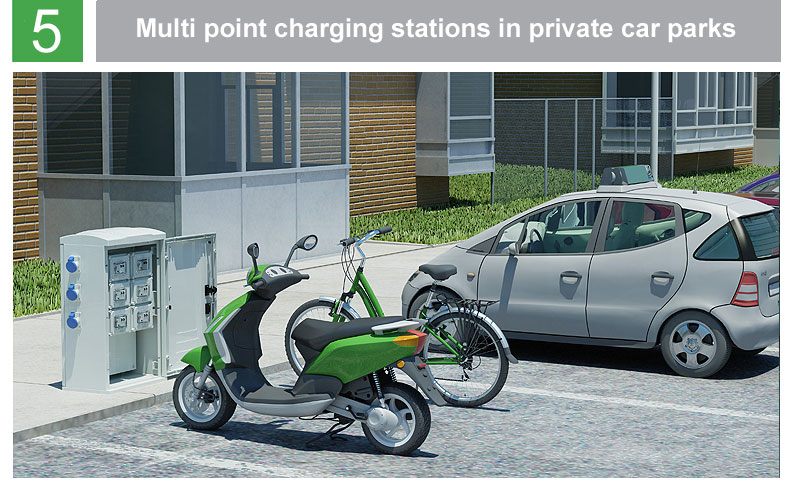

On top of the easy and economic solutions that we offer for car fleet charging stations, the main benefits are:

  • User friendly.
  • Robust and compact enclosure, high impact resistance against vandalism.
  • Range of 2, 4 or 6 charging sockets.
  • Complete insulation + safety device to avoid accidents, discharges and short circuits.

With the purchase of one of these enclosures you will also get as a gift, the spray template to mark the charging station on the floor.

WITHOUT SECONDARY METER TO READ THE ELECTRICITY SUPPLY

  • Part No.
  • Description
  • WidexHighxDeep

  • UR-CG-2B2P-A
  • 2 Sockets 2P+T 16A + MCB protection.
  • 500x750x300 mm

  • UR-CG-4B4P-A
  • 4 Sockets 2P+T 16A + MCB protection.
  • 500x750x300 mm

  • UR-CG-6B6P-A
  • 6 Sockets 2P+T 16A + MCB protection.
  • 500x750x300 mm

WITH SECONDARY METER TO READ THE ELECTRICITY SUPPLY

  • Part No.
  • Description
  • WidexHighxDeep

  • UR-CG-2B2P2C-A
  • 2 Sockets 2P+T 16A + MCB protection + Secondary meters.
  • 500x750x300 mm

  • UR-CG-4B4P4C-A
  • 4 Sockets 2P+T 16A + MCB protection + Secondary meters.
  • 500x750x300 mm

  • UR-CG-6B6P6C-A
  • 6 Sockets 2P+T 16A + MCB protection + Secondary meters.
  • 500x750x300 mm
