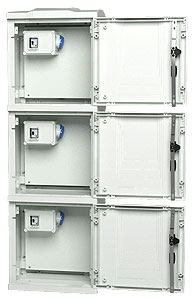

- Hot moulded fibreglass reinforced polyester floor standing enclosure.
- Manufactured with self extinguishing material, 960º glow fire according to UNE-20672.
- Non hygroscopic material with minimum water absortion.
- High resistance to chemical and corrosive environments, impacts and UV stabilized.
- Each enclosure is provided with its own lock and key.
- Each enclosure includes:
- 30 mA MCB + 10A automatic switch disconnector.
- 16A 2P + T Socket, IP66.
- Secondary meter for electricity reading (depending on the model).

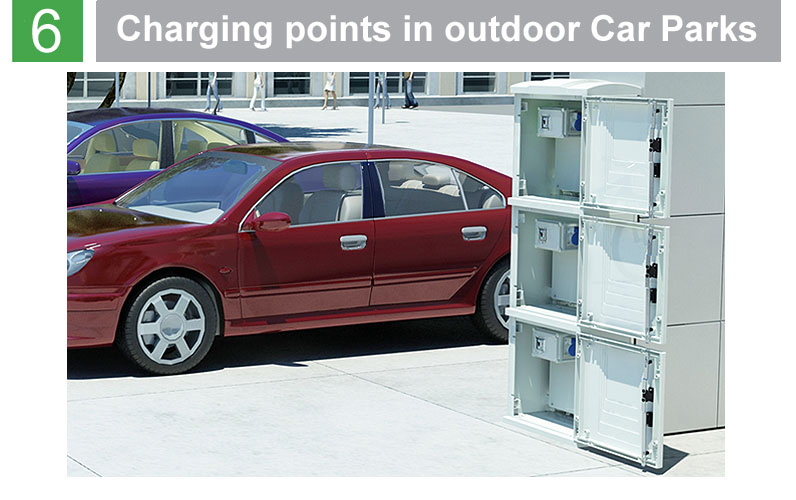

These assemblies offer a good solution to manage and monitor all type of multi user charging points in Car parks.
WITHOUT SECONDARY METER TO READ THE ELECTRICITY SUPPLY
- Part No.
- Description
- WidexHighxDeep
- UR-CG-1B1P-1A
- 1 Socket 2P+T 16A + MCB protection.
- 500x550x300 mm
- UR-CG-1B1P-1A
- 2 Sockets 2P+T 16A + MCB protection.
- 500x1050x300 mm
- UR-CG-1B1P-1A
- 3 Sockets 2P+T 16A + MCB protection.
- 500x1550x300 mm
WITH SECONDARY METER TO READ THE ELECTRICITY SUPPLY
- Part No.
- Description
- WidexHighxDeep
- UR-CG-1B1P-1A
- 1 Socket 2P+T 16A + MCB protection + Secondary meter.
- 500x550x300 mm
- UR-CG-1B1P-1A
- 2 Sockets 2P+T 16A + MCB protection + Secondary meters.
- 500x1050x300 mm
- UR-CG-1B1P-1A
- 3 Sockets 2P+T 16A + MCB protection + Secondary meters.
- 500x1550x300 mm
