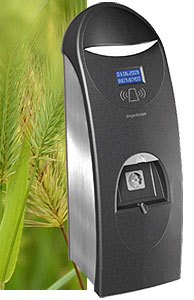

The basic features of each charge point station are :
- Maximum safety electric supply.
- Identification of the user/vehicle by RFID (Radio frequency identification) or SMS.
- Power and energy metering.
- Blocking the access to non authorized users.
- Lamp indicator with the different status of the post (ready for charging, charging, out of service).
- Linked to other nearby charge points and wirelessly connected to a central communications network.
- Able to operate even when a power failure has occurred on the local network.

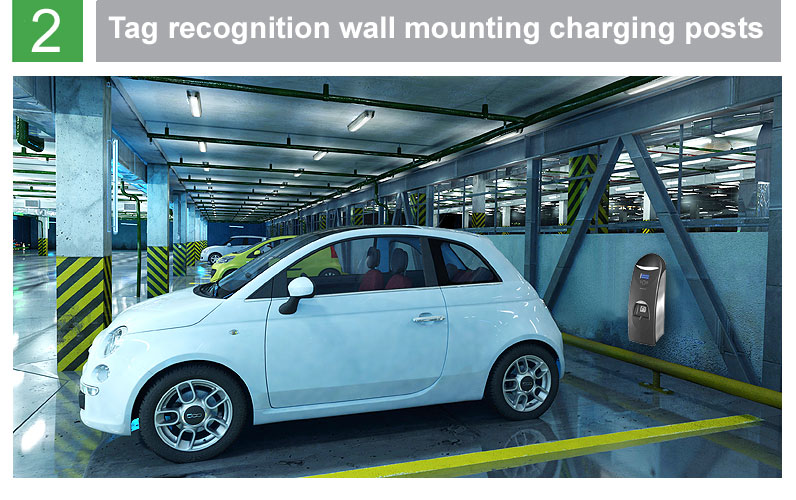

- Assembly
- Wall
- Socket
- 2P + T Schuko and IEC 309-2
- AC output
- 3.7 kW (230V @ 16A) 50/60 Hz
- Power Supply
- 30 V 16 A 50/60 Hz: Phase Neutral Ground
- Connection type
- Single phase *
- Rated Frequency
- 50/60 Hz
- Ambient temperatures
- -20ºC to 50ºC
- Humidity
- < 95%
- Protections
- ···· Over Current
- MCB/Automatic Reset/Automatic Reset
- ···· Differential Current
- Differential Current device 30mA
- ···· Over Voltage
- -
- Power Metering
- Class A
- RFID Tag
- ISO 1444 3A / Mifare – 13.56 Mh Z
- Communications
- RS485,Wireless ISM868,Ethernet,Optic Fiber,CAN,GRPS
- Ingress Protection
- IP44
- Impact Resistance
- IK10
- Compliance
- Low voltage directive : 2006/95/CE
EMC : 2004/108/CE - Battery Mode
- 24 hours stand-by
- Dimensions
- 756 x 257 x 254 mm
- Weight
- 25 Kg
- Notes: * 3 Phase Meter (32A) option also available.
- Part No.
- Description
- UR-CG-1B1P-PK
- 1 Socket 2P+T 16A.
- UR-CG-2B2P-PK
- 2 Sockets 2P+T 16A.
