FEATURES
  • Clear UV stabilized polycarbonate covers.
  • Bus Copper bar system 20x4, 250A current rating.
  • Neozed fuse holders for each meter.
  • Secondary meters depending on the model.
  • Safety Cables, don’t spread the fire, no smoke emissions, halogen free and marked.
  • Terminal blocks rated to max. 25mm2.

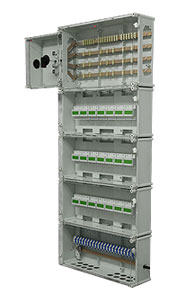

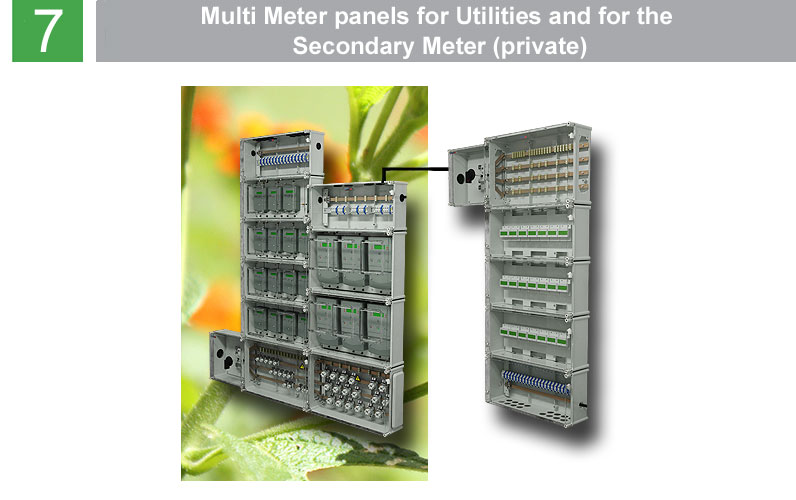

These multi meter panels are safe and robust. All the meters of the charging station are gathered in the same panel to monitor all the readings of a neighbourhood area or Car Park.

LIST OF PANELS

  • Código Ref.
  • Descripción
  • WidexHighxDeep

  • UR-AMSEC-3
  • 3 meters Panel.
  • 480x985x195 mm

  • UR-AMSEC-4
  • 4 meters Panel.
  • 480x985x195 mm

  • UR-AMSEC-5
  • 5 meters Panel.
  • 480x985x195 mm

  • UR-AMSEC-6
  • 6 meters Panel.
  • 630x985x195 mm

  • UR-AMSEC-7
  • 7 meters Panel.
  • 630x985x195 mm

  • UR-AMSEC-8
  • 8 meters Panel.
  • 480x1275x195 mm

  • UR-AMSEC-9
  • 9 meters Panel.
  • 480x1275x195 mm

  • UR-AMSEC-19
  • 10 meters Panel.
  • 480x1275x195 mm

  • UR-AMSEC-11
  • 11 meters Panel.
  • 630x1275x195 mm

  • UR-AMSEC-12
  • 12 meters Panel.
  • 630x1275x195 mm

  • UR-AMSEC-13
  • 13 meters Panel.
  • 630x1275x195 mm

  • UR-AMSEC-14
  • 14 meters Panel.
  • 630x1275x195 mm

  • UR-AMSEC-15
  • 15 meters Panel.
  • 480x1565x195 mm

  • UR-AMSEC-16
  • 16 meters Panel.
  • 630x1565x195 mm

  • UR-AMSEC-17
  • 17 meters Panel.
  • 630x1565x195 mm

  • UR-AMSEC-18
  • 18 meters Panel.
  • 630x1565x195 mm

  • UR-AMSEC-19
  • 19 meters Panel.
  • 630x1565x195 mm

  • UR-AMSEC-20
  • 20 meters Panel.
  • 630x1565x195 mm

  • UR-AMSEC-21
  • 21 meters Panel.
  • 630x1565x195 mm

ACCESSORIES

  • Part No.
  • Description
  • WidexHighxDeep

  • UR-CENTR-50

  • Centralizador de 50 entradas de impulsos. (Posibilidad de enviar los datos vía GSM, Ethernet..etc.)
  • 360x360x170 mm
